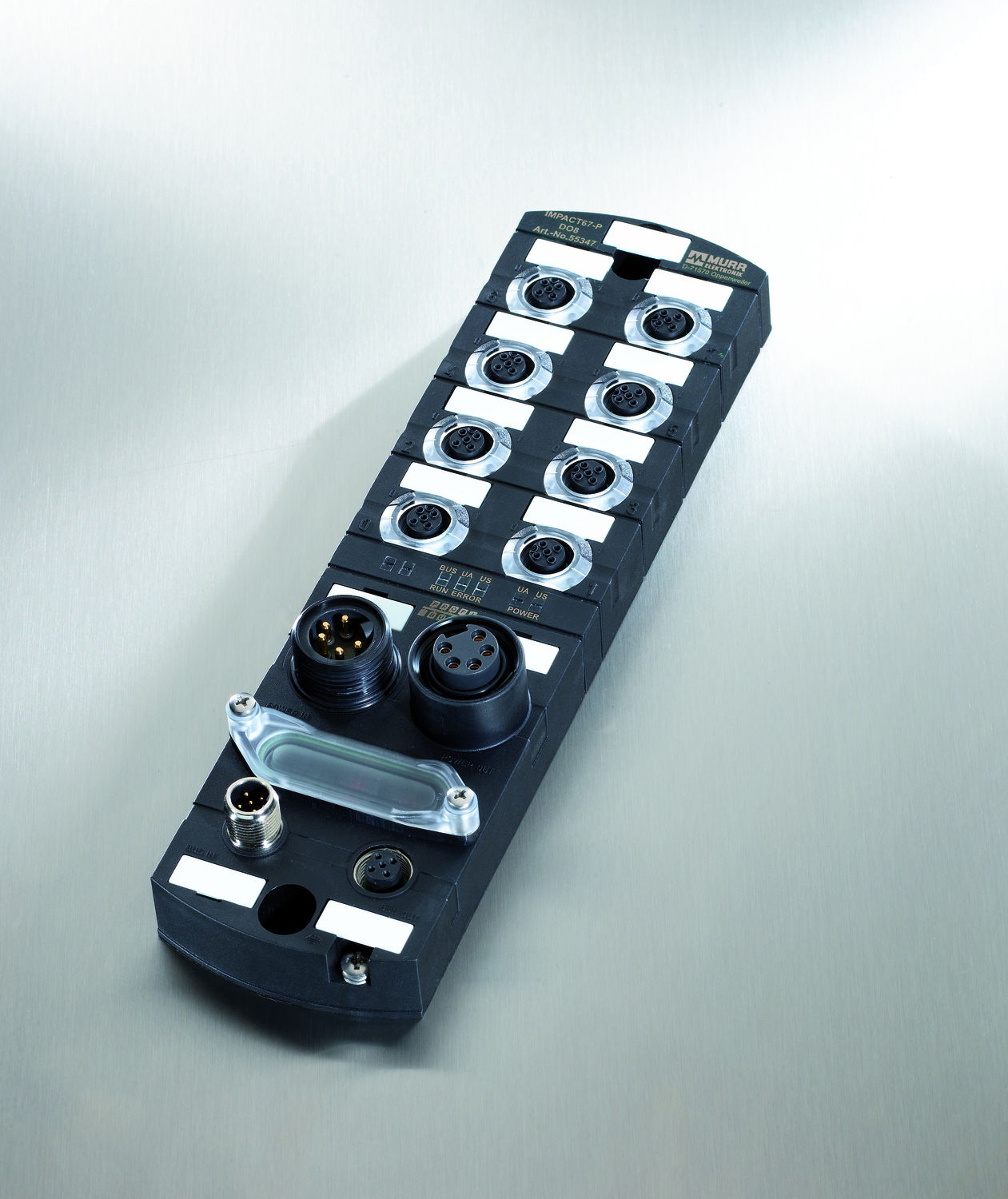

Impact67

Compact Fieldbus Module for Digital Signals

Focusing on Cost Effectiveness

With Impact67, you can implement cost-effective fieldbus solutions with simple, digital signals. The fully potted robust modules are available in a variety of communication protocols. Features include: port mounted LED status indicators, group diagnostics, and IP67 protection.

Economic decentralization

  • Short I/O cables to valves and sensors
  • Built in T connection for power and communication make installation easy
  • Select from predefined or configurable I/O modules
IP67 Rated
Diagnostics
Single Channel Switch Off
Murrelektronik ip rated pictogram
Resistant to Environmental Forces

The unit is dust-tight, tamper-proof and protected against temporary immersion which is defined as spending up to 30 minutes in water that's 1m deep.

Murrelektronik diagnostics pictogram
Comprehensive Diagnostic Options

Each channel can be individually monitored for possible failures such as overload, sensor short circuit or wire break. In the event of a failure, an LED will come on at the affected port. Additionally, a message is sent to the control.

Targeted Reaction to Short Circuits

If an input or output short circuits, only the affected channel is shut off. Adjacent inputs and outputs remain functional. The shut down channel is indicated by a red LED and a message is sent to the control.

More Information

Tech Specs and Product Info
