Cube20

Control Cabinet I/O

488 I/O Points in 90 Centimeters

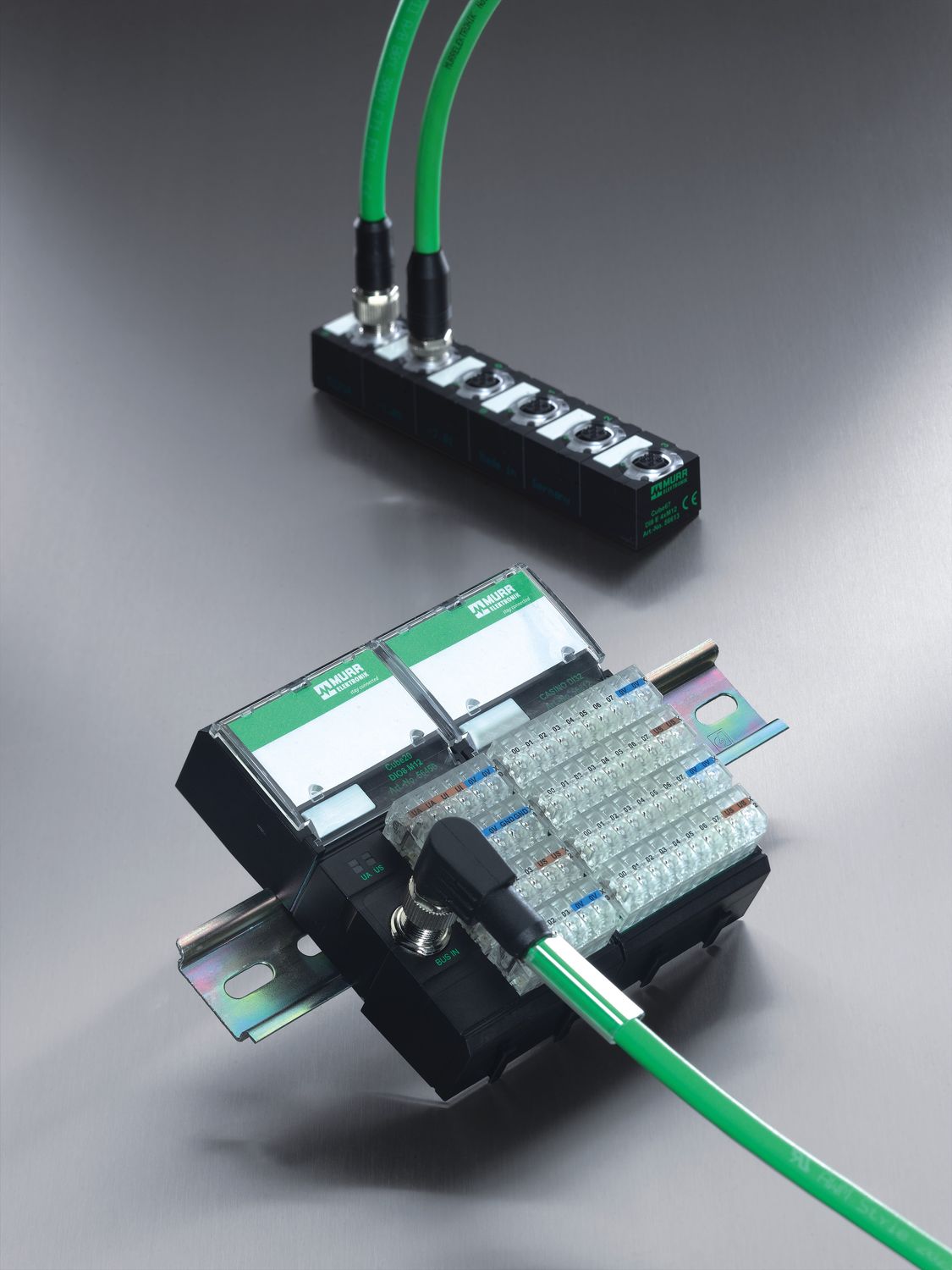

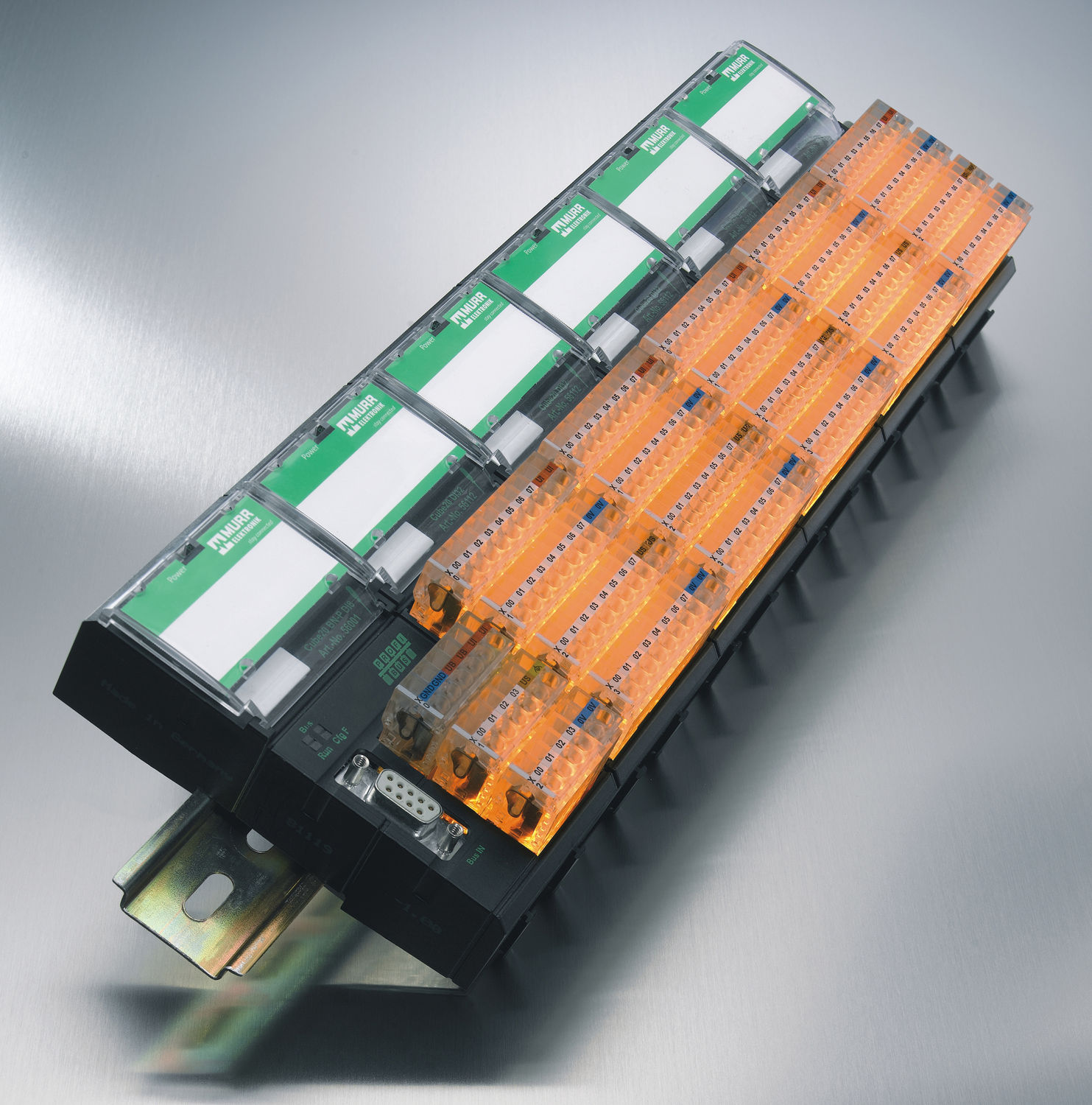

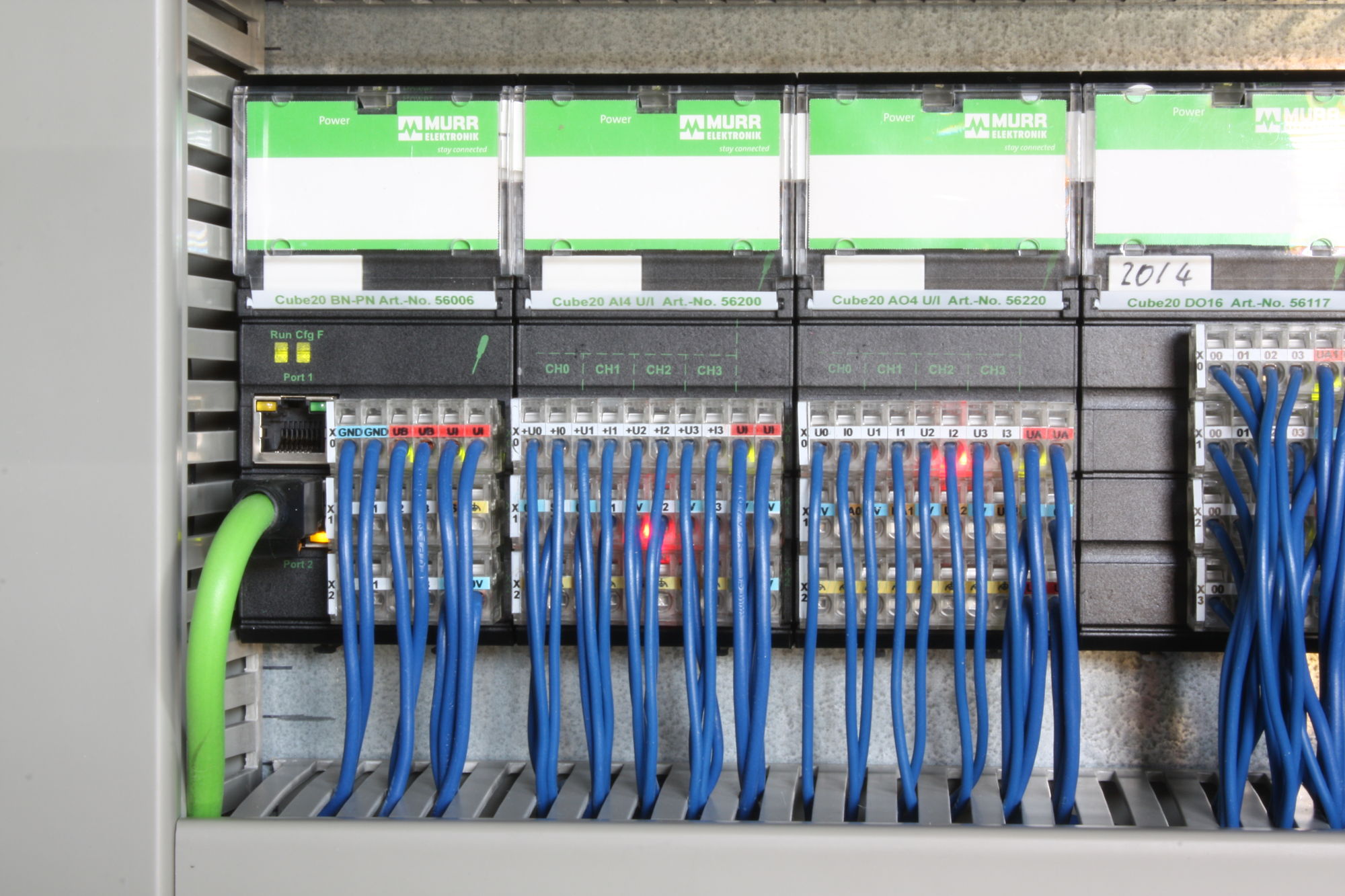

Cube20 is a centralized IP20 I/O station with modular function modules and the ability to connect direct to Cube67 modules. The compact modules have a high signal installation of up to 32 channels in one module. This significantly reduces the wiring efforts in the cabinet. Up to 488 I/O points in a width of only 90 centimeters helps to save space in the cabinet.

Fieldbus in the Cabinet with a bridge to the Field

  • IP67 and IP20 transitional modules
  • Maintenance-free spring clamp terminals and removable terminal blocks
  • Visible LEDs make signal status easy to trouble shoot
  • Expandable to 15 modules with one IP address
  • Expand from the cabinet up to 10m with Cube67 modules
Change the bus not the system
Machine Option Management (MOM)
Murrelektronik change the bus not the system pictogram
Minimal Engineering Effort

Installation concepts based on Cube20 and Cube67 can be easily integrated into higher level fieldbus systems with a single bus node. Machine modules can remain the same across multiple platforms and adapted to different protocols by swapping only the one bus node as needed for a different protocol.

Murrelektronik machine option management pictogram
A Concept with Options

Machines and systems often differ only in their options. With the Machine Option Management (MOM), hardware and software are configured once, based on a standardized maximum configuration. To simplify setup, the MOM recognizes the option installed and activates the modules required.
